Selecting the physical size of a pressure switch is often driven by more than just available space. While full-sized models typically offer higher electrical ratings or larger sensing elements for extreme sensitivity, miniature pressure switches provide specialized benefits for modern industrial design.
At Whitman Controls, we have held a leadership position in the sensor industry for over 40 years, offering a diversified range of compact solutions that do not sacrifice performance for their small footprint. Understanding the specific trade-offs between these two form factors is essential for optimizing your equipment’s efficiency and reliability.
Space Constraints and OEM Integration for Miniature Pressure Switches
The most obvious reason to select a miniature pressure switch is a lack of physical space. In modern Original Equipment Manufacturer (OEM) applications, there is a constant drive to reduce system footprints, particularly for mobile or on-machine equipment. Miniature switches allow engineers to integrate critical safety and control functions into tight compartments that could not accommodate a standard, bulky housing.
- Tight Spaces: Compact switches like the Whitman P119 series are specifically designed for tight spaces where standard diaphragm or piston housings would be too large.
- Small System Footprints: Miniature formats are essential for keeping system footprints small, especially for mobile and on-machine equipment mounting.

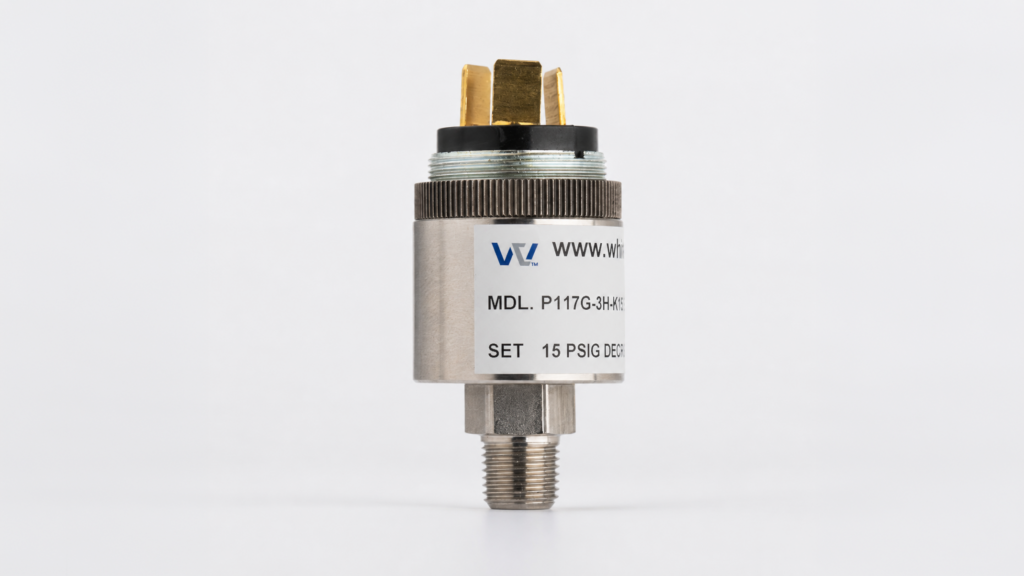

- OEM-Grade Performance: Despite their size, switches like the P117 series are highly versatile and used in hundreds of routine mechanical and OEM applications.
- Weight Reduction: Miniature models are significantly lighter for example, the P117 series has a low weight of approximately 3.0 oz.
Specialized Applications Where Miniature Pressure Switches Excel
Miniature switches are frequently engineered for high-tech environments where purity, speed, and precision are more important than heavy-duty bulk. These applications often require the switch to be an integral part of a complex, automated assembly rather than a standalone utility device.
- Medical Radiography: The P119G miniature switch is a standard choice for pressure limit protection on X-ray and CT scan tubes.
- High-Purity Processes: The W117 series provides ultra-pure, stainless steel welded interiors that are helium-leak checked for use in silicon wafer ovens and medical devices where no detectable impurities can be tolerated.
- Fast Response Times: Smaller internal volumes in miniature switches can lead to a reduction in vapor purge turnover due to superior instrument response times.
- Hygienic Environments: Miniature switches are often constructed from materials like 303 stainless steel, which are conducive to medical-grade and hygienic environments.
When to Choose Full-Sized Pressure Switches Instead
While miniature switches are ideal for many modern tasks, full-sized models are still the preferred choice for applications involving extreme electrical loads or the need for highly visible field adjustments.
- High Electrical Loads: Full-sized switches can handle higher electrical ratings, such as the P88 series which offers ratings up to 25 Amps.

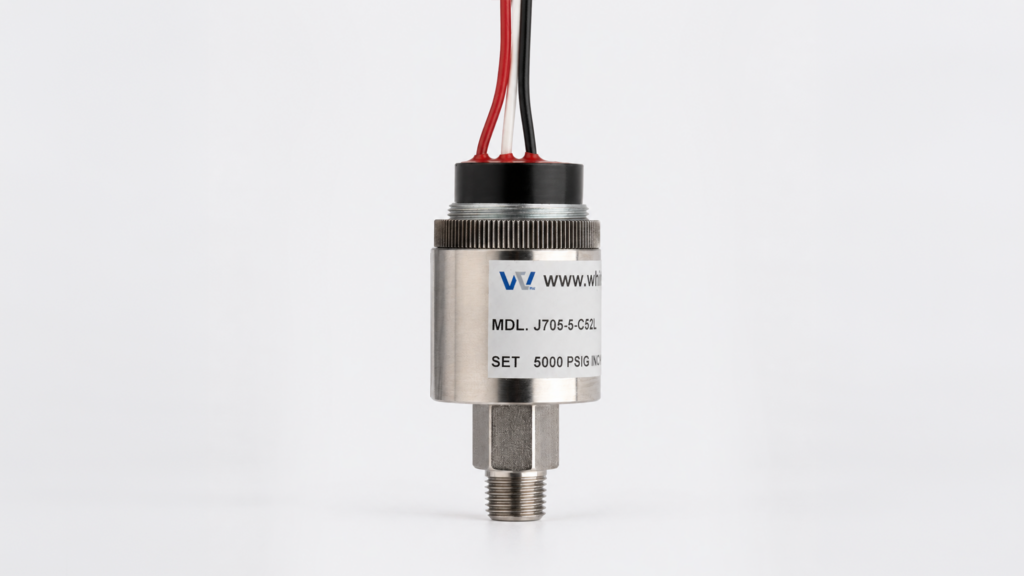

- Severe Duty Durability: In environments like mining or heavy hydraulic testing, larger piston-actuated switches like the J705 can withstand pressure spikes up to 9,000 PSIG while maintaining long-term stability.
- Multiple Set Points: Larger vertical mount switches, such as the L30 series, can accommodate up to six different level points on a single shaft.
- Manual Adjustability: Larger housings often feature more intuitive external setting scales or manual adjustment screws that are easier for field technicians to manipulate with standard tools.
How to Select the Right Pressure Switch for Long-Term Value
Choosing the right size is a balance of application, media environment, and dozens of other specifications. Whitman Controls offers a wide diversity of both miniature and full-sized products, all backed by our ISO 9001:2015 certification. We can help you standardize your lineup, often reducing parts lists from dozens of models down to a few versatile, compact units that fit multiple equipment models.
