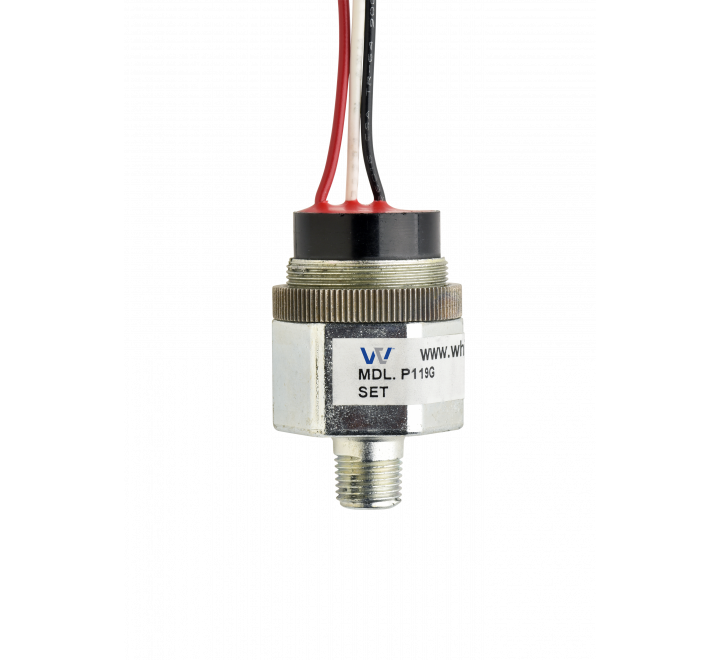

P119G Replacement For Dunlee 93580-00 Rev C
$125.50
PRODUCT ID: P119G-5H-F12T-X30191
The P119G Zinc Diecast Body Pressure Switches are the inexpensive version of the P117G and recommended for indoor OEM use. The compact nature of these switches make them ideal for tight spaces.
- Set Point Range: 0.80 to 500 PSIG
- Max System Pressure: 150% of sensor capacity
- Temperature range: -65°F to +225°F (-54°C to +107°C)
The Whitman Controls P119G Zinc Diecast Body Pressure Switches are the inexpensive version of the P117G and recommended for indoor OEM use. It is used as a pressure limit switch on X-Ray tube and Cat Scan Tubes as well as a safety switch in numerous applications. The compact nature of these switches make them ideal for tight spaces. They are available with a cast in ¼” NPT fitting as an option. There are also several electrical interface options available.
Key Features:
- Zinc Diecast Body
- Set point options: Factory set, field adjustable, or a combination
- Extensive operating temperature range
- Wide range of electrical interfaces available
- SPDT or SPST availability
Specifications:
- Set point range: 0.80 to 500 PSIG
- Max System pressure: 150% of sensor capacity
- Temperature range: -65°F to +225°F (-54°C to +107°C)
- Amps: 5 Amps Max
- Sensor Element: Capsule
- Weight: 2.0 oz (varies with electrical interface selection)
- Cycling: 3H/5H – Not to exceed 60 CPM, 10H/25H/50H – Not to exceed 20 CPM
- Wetted Parts:
Capsule: 17-7 PH
Seal: Loctite #271
Body with Fitting: Round Body – Zamac 3 / Chromate finish, Hex Body – ZA8, chromate finish
Body: Anodized aluminum
Standard Thread: ⅛-27 NPT male, Optional Threads: ¼-18 NPT male (Hex body only)
