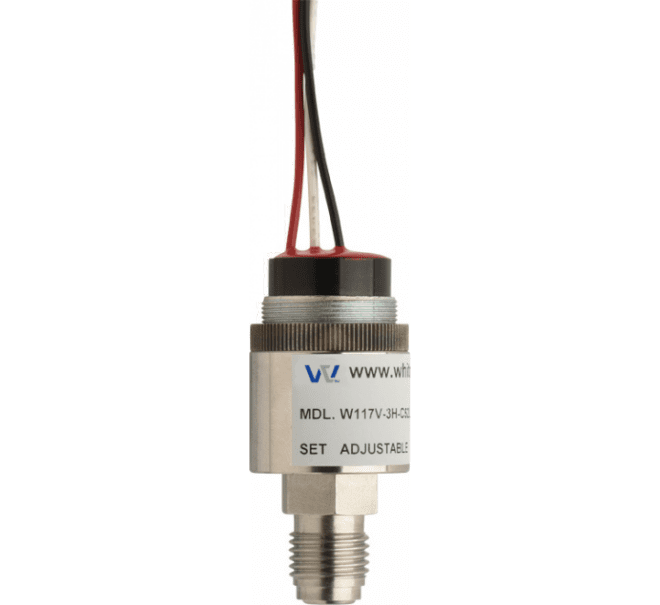

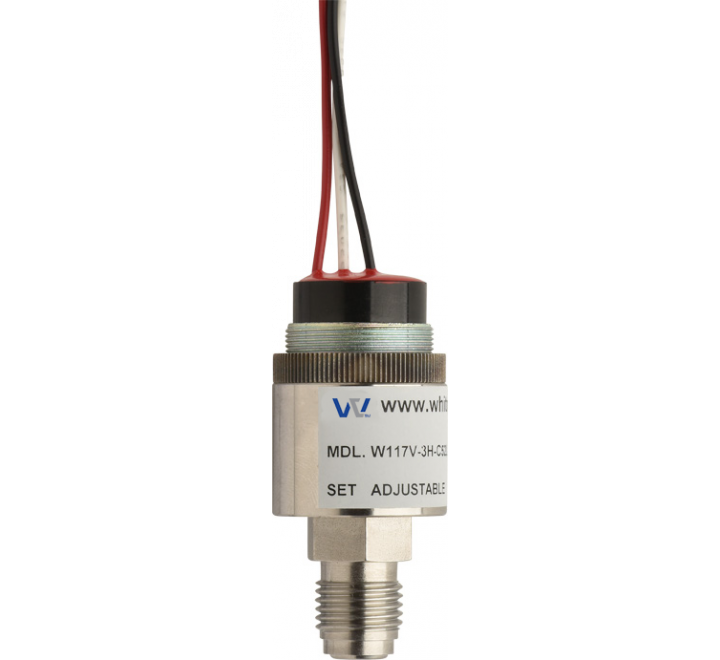

W117V Pressure Switch W117V-3H-C52L-DIS
$149.00
PRODUCT ID: W117V-3H-C52L-DIS
The W117V Ultra Pure Stainless Steel Vacuum Switches have all welded stainless steel interiors which are Helium leak checked to pass 4 x 10-9 Std CC/Sec. These switches are used in silicon wafer ovens, numerous medical devices, and other applications where even the slightest impurities are not tolerated.
- Set Point Range: 1.6 to 28.2 InHg
- Max System Pressure: 0 PSIG
- Temperature range: -65°F to +225°F (-54°C to +107°C)
PRODUCT ID: W117V-3H-C52L-DIS
The W117V Ultra Pure Stainless Steel Vacuum Switches have all welded stainless steel interiors which are Helium leak checked to pass 4 x 10-9 Std CC/Sec. These switches are used in silicon wafer ovens, numerous medical devices, and other applications where even the slightest impurities are not tolerated.
- Set Point Range: 1.6 to 28.2 InHg
- Max System Pressure: 0 PSIG
- Temperature range: -65°F to +225°F (-54°C to +107°C)
Details
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Lead Time | 1-2 Days |
PRODUCT ID: W117V-3H-C52L-DIS
The Whitman Controls W117G Ultra Pure Stainless Steel Pressure Switches have all welded stainless steel interiors which are Helium leak checked to pass 4 x 10-9 Std CC/Sec. These switches are used in silicon wafer ovens, numerous medical devices and other applications where even the slightest impurities are not tolerated. There are a number of fitting options available featuring the ¼” VCR Male and many interface options to fit any application.
SPECIFICATIONS:
Sensor Code: -5H — Max 29.9 Inches Hg
Set Point Range:
-
Decreasing: 4.0 to 24.8 Inches Hg
-
Increasing: 5.1 to 28.2 Inches Hg
Sensor Code: -3H — Max 29.9 Inches Hg
Set Point Range:
-
Decreasing: 1.6 to 27.0 Inches Hg
-
Increasing: 2.7 to 28.2 Inches Hg
Fitting: VCR Fitting — Standard (⅛” NPT)
Set Point Options: Customer Set, Field Adjustable
Electrical Ratings:
-
205 VAC / 28 VDC
-
5 Amp Resistive
-
3 Amp Inductive
-
Silver Contact Material
Contact Type: SPDT (Single-Pole, Double-Throw)
Electrical Interface:
-
Lead Wires with Sleeve
Quick Ship Option: DIS — Stocked Items (Typically Ships Within 48 Hours)
Factory Set Point: N/A (Customer Adjustable)
Wire Length: 12″ (Standard)
