P117V Pressure Switch P117V-5H-C52L-DIS
$130.25
PRODUCT ID: P117V-3H-C52TB-DIS
The P117G Stainless Steel Miniature Pressure switches are sharp, highly versatile devices that can be used in hundreds of OEM and routine mechanical applications. It is among our most popular switches given its durability and diverse set point options. There are numerous fitting and electrical connectors available featuring TB, TS, Military and DIN Connectors.
- Set Point Range: 0.80 to 500 PSIG
- Max System Pressure: 150% of Sensor Capacity
- Temperature range: -65°F to +225°F (-54°C to +107°C)
PRODUCT ID: P117V-5H-C52L-DIS
The P117V Stainless Steel Miniature Vacuum switches are sharp, highly versatile devices that can be used in hundreds of OEM and routine mechanical applications. It is among our most popular switches given its durability and diverse set point options.
- Set Point Range: 1.6 to 28.2 InHg
- Max System Pressure: 150% of Sensor Capacity
- Temperature range: -65°F to +225°F (-54°C to +107°C)
Details
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Lead Time | 1-2 Days |

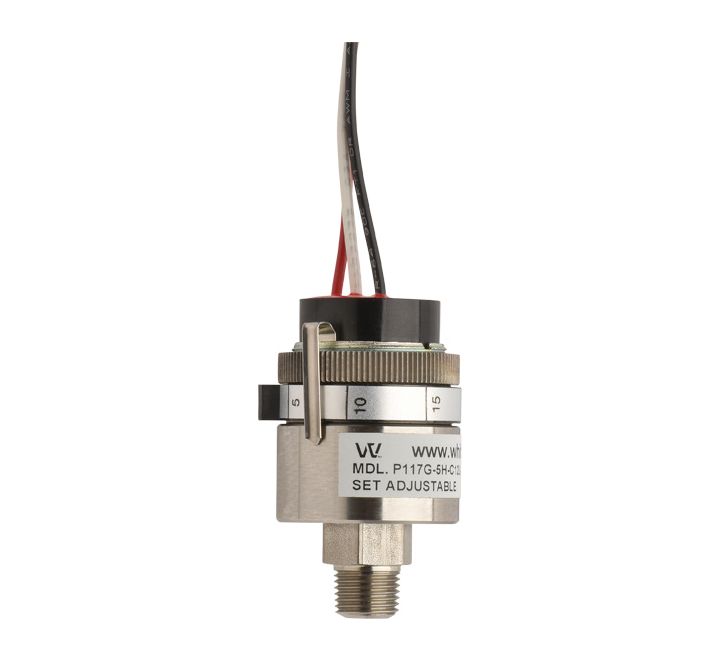

PRODUCT ID: P117V-5H-C52L-DIS
The Whitman Controls P117V Stainless Steel Miniature Vacuum switches are sharp, highly versatile devices that can be used in hundreds of OEM and routine mechanical applications. It is among our most popular switches given its durability and diverse set point options. There are numerous fitting and electrical connectors available featuring TB, TS, Military and DIN Connectors.
SPECIFICATIONS:
Sensor Code: -5H — Max 29.9 Inches Hg
Set Point Range:
-
Decreasing: 4.0 to 24.8 Inches Hg
-
Increasing: 5.1 to 28.2 Inches Hg
Set Point Options: Customer Set, Field Adjustable
Electrical Ratings:
-
205 VAC / 28 VDC
-
5 Amp Resistive
-
3 Amp Inductive
-
Silver Contact Material
Contact Type: SPDT (Single-Pole, Double-Throw)
Electrical Interface:
-
Lead Wires with Sleeve
-
Standard Production Lead Times Apply
Quick Ship Option: DIS — Stocked Items (Typically Ships Within 48 Hours)
Factory Set Point: N/A (Customer Adjustable)
Wire Length: 12″ (Standard)
