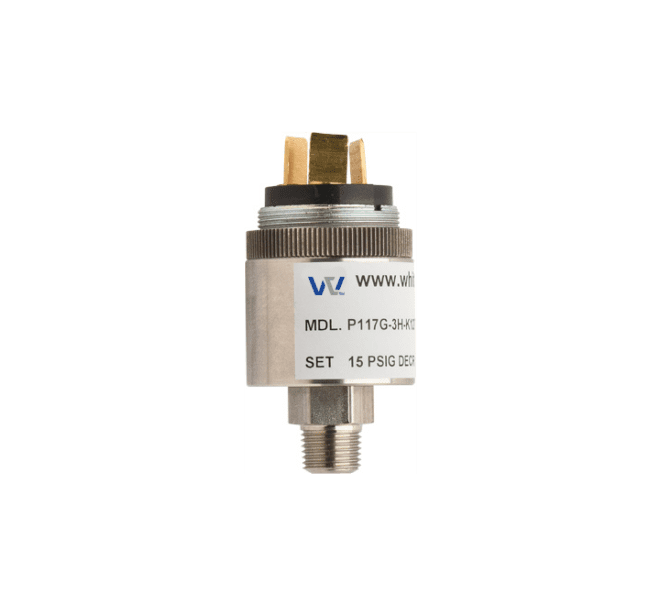

P117G – Stainless Steel Pressure Switch
$133.50
PRODUCT ID: P117G-25H-C12L-DIS
The P117G Stainless Steel Miniature Pressure switches are sharp, highly versatile devices that can be used in hundreds of OEM and routine mechanical applications. It is among our most popular switches given its durability and diverse set point options. There are numerous fitting and electrical connectors available featuring TB, TS, Military and DIN Connectors.
- Set Point Range: 0.80 to 500 PSIG
- Max System Pressure: 150% of Sensor Capacity
- Temperature range: -65°F to +225°F (-54°C to +107°C)
Model: Stainless Steel Miniature Pressure Switch
Sensor Code: Max 250 PSIG, Set Pt Dec 5.0 – 242.5, Inc 9.7 – 250.0
Set Point Options: Customer Set, Field Adjustable
Electrical Amperage: 115 VAC / 28 VDC, 1/1 Amp resistive, 1/.5 Amp Inductive, Gold contact mat.
Contact Selection: SPDT
Electrical Interface Options: Lead Wires with a sleeve (standard production lead times apply)
Quick Ship Stock: Stocked Items (Typically ships within 48 hours)
Factory Set Point: N/A
Wire Length: 12″ (Standard)
Details
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Lead Time | 1-2 Days |
PRODUCT ID: P117G-25H-C12L-DIS
The Whitman Controls P117G Stainless Steel Miniature Pressure switches are sharp, highly versatile devices that can be used in hundreds of OEM and routine mechanical applications. It is among our most popular switches given its durability and diverse set point options. There are numerous fitting and electrical connectors available featuring TB, TS, Military and DIN Connectors.
Key Features:
- Miniature size
- Stainless steel body
- Set point options: Factory set, field adjustable, or a combination
- Extensive operating temperature range
- Wide range of electrical interfaces available
- SPDT
Specifications:
Sensor Code: -25H — Max 250 PSIG
Set Point Range:
-
Decreasing: 5.0 to 242.5 PSIG
-
Increasing: 9.7 to 250.0 PSIG
Set Point Options: Customer Set, Field Adjustable
Electrical Ratings:
-
115 VAC / 28 VDC
-
1 Amp Resistive
-
0.5 Amp Inductive
-
Gold Contact Material
Contact Type: SPDT (Single-Pole, Double-Throw)
Electrical Interface: Lead Wires with Sleeve (Standard Production Lead Times Apply)
Quick Ship Option: DIS — Stocked Items (Typically Ships Within 48 Hours)
Factory Set Point: N/A (Customer Adjustable)
Wire Length: 12″ (Standard)
