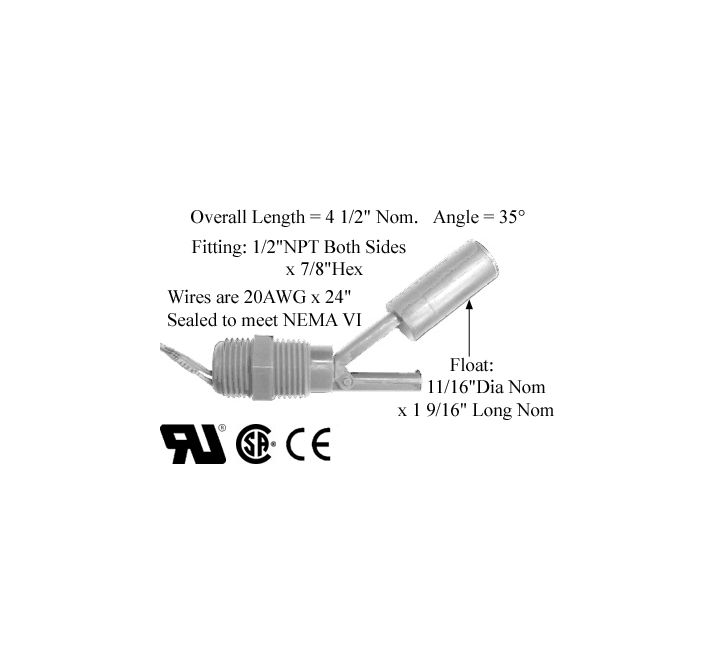

L20 Series Side Mounted Kynar Plastic Liquid Level Switch

$37.75

PRODUCT ID: L20-17-S1-17-NO

The L20 Series Side Mounted Kynar Plastic Liquid Level Switches come with a 1/2″ NPT fitting and are typically used with solvents and certain bases. The side mount provides added versatility, allowing the switch to be used as a high or low level indicator, and plastic body provides use up to 100 PSI.

  • Minimum Liquid Specific Gravity: 1.00
  • Liquid Temperature Range: -40℉ to +180℉
  • Max System Pressure: 100 PSIG
  • Wetted Materials:  Kynar Plastic
  • Fitting: 1/2″ NPT
  • BSPT mounting: Available on request

By submitting your payment, you agree to our terms and conditions.

SKU L20-17-S1-17-NO Category



The Whitman Controls L20 Series Side Mounted Kynar Plastic Liquid Level Switches come with a 1/2″ NPT fitting and are typically used with solvents and certain bases. The side mount provides added versatility, allowing the switch to be used as a high or low level indicator, and plastic body provides use up to 100 PSI. These are most often used in many O.E.M. and one-off applications. These are available with several options as specified by the user.



Key Features:

  • Whitman Red Seal potting submersible to a NEMA 6 rating
  • Kynar Plastic
  • Side mounted
  • Extensive operating temperature range
  • SPST availability



Specifications:

  • Fitting: 1/2″ NPT
  • Wetted Materials: Kynar Plastic
  • Minimum Liquid Specific Gravity: 1.00
  • Liquid Temperature range: -40℉ to +180℉
  • Max System Pressure: 100 PSIG
  • Electrical Switch Rating: 50 VA
  • Weight: 5oz (approx.)



L20 & L25 Series Kynar Level Switch Datasheet

Technical Information
