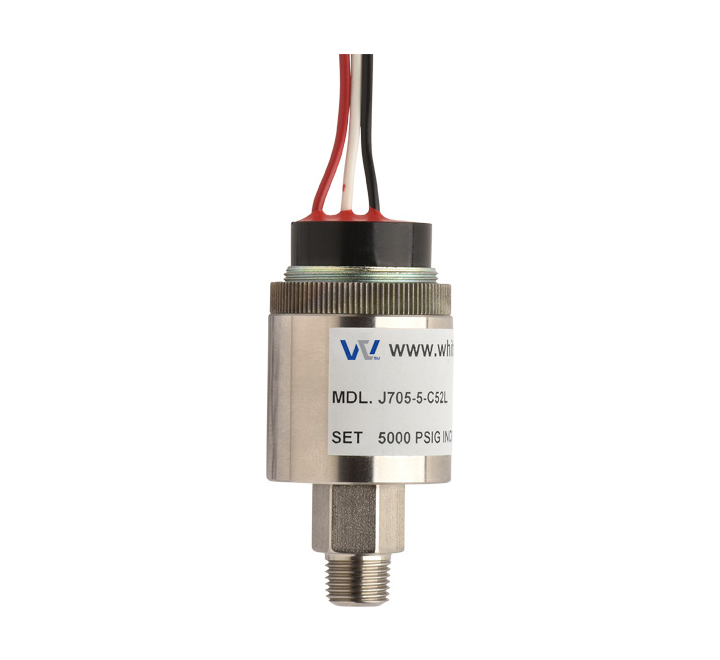

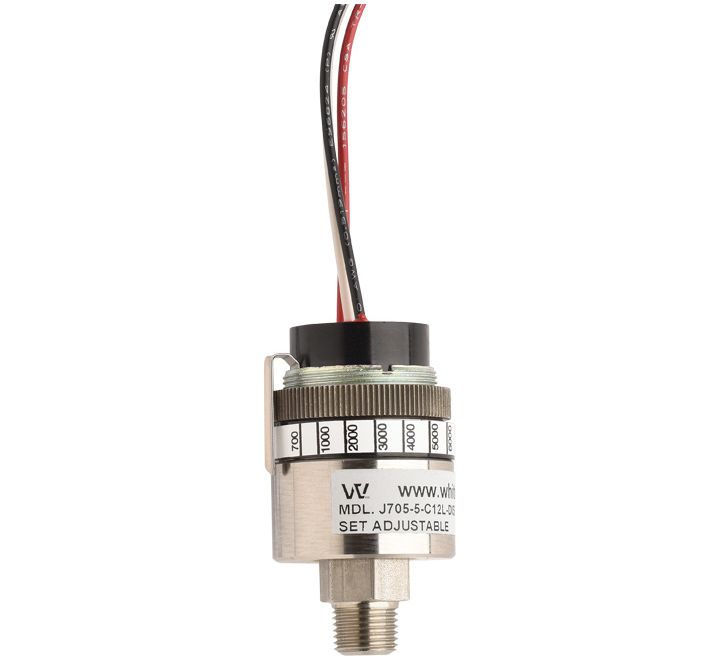

J705 High Pressure/High Set Point Switch J705-4-C52L-DIS
$171.50
PRODUCT ID: J705-4-C52L-DIS
The J705 Pressure Switches are among our most durable products, affording the end user higher set points to complement more severe environments without sacrificing set point repeatability. These switches are designed for use with various oils, waters, and assorted gases, and are resilient against impeller spikes from pumps.
- Set Point Range: 500 to 6,000 PSIG
- Max System Pressure: 9,000 PSIG
- Temperature range: -65°F to +225°F (-54°C to +107°C)
PRODUCT ID: J705-4-C52L-DIS
The J705 Pressure Switches are among our most durable products, affording the end user higher set points to complement more severe environments without sacrificing set point repeatability. These switches are designed for use with various oils, waters, and assorted gases, and are resilient against impeller spikes from pumps.
- Set Point Range: 500 to 6,000 PSIG
- Max System Pressure: 9,000 PSIG
- Temperature range: -65°F to +225°F (-54°C to +107°C
Details
| Weight | 1 lbs |
|---|---|
| Dimensions | 4 × 4 × 4 in |
| Lead Time | 1-2 Days |
PRODUCT ID: J705-4-C52L-DIS
The Whitman Controls J705 High Pressure High Set Point Pressure Switches are among our most durable products, affording the end user higher set points to complement more severe environments without sacrificing set point repeatability. These switches are designed for use with various oils, waters, and assorted gases, and are resilient against impeller spikes from pumps. These switches can see pressure spikes to 9,000 psig without comprising switch integrity or functionality. They are available with several internal o-ring options, assorted fittings and electrical connectors to meet any custom application.
SPECIFICATIONS:
Sensor Code: -4 — Max 5000 PSIG
Set Point Range:
-
Decreasing: 45.0 to 4500 PSIG
-
Increasing: 600 to 5000 PSIG
Set Point Options: Customer Set, Field Adjustable
Electrical Ratings:
-
205 VAC / 28 VDC
-
5 Amp Resistive
-
3 Amp Inductive
-
Silver Contact Material
Contact Type: SPDT (Single-Pole, Double-Throw)
Electrical Interface:
-
Lead Wires with Sleeve
Special Wire Length: 12″ (Standard)
Quick Ship Option: DIS — Stocked Items (Typically Ships Within 48 Hours)
Factory Set Point: N/A (Customer Adjustable)
